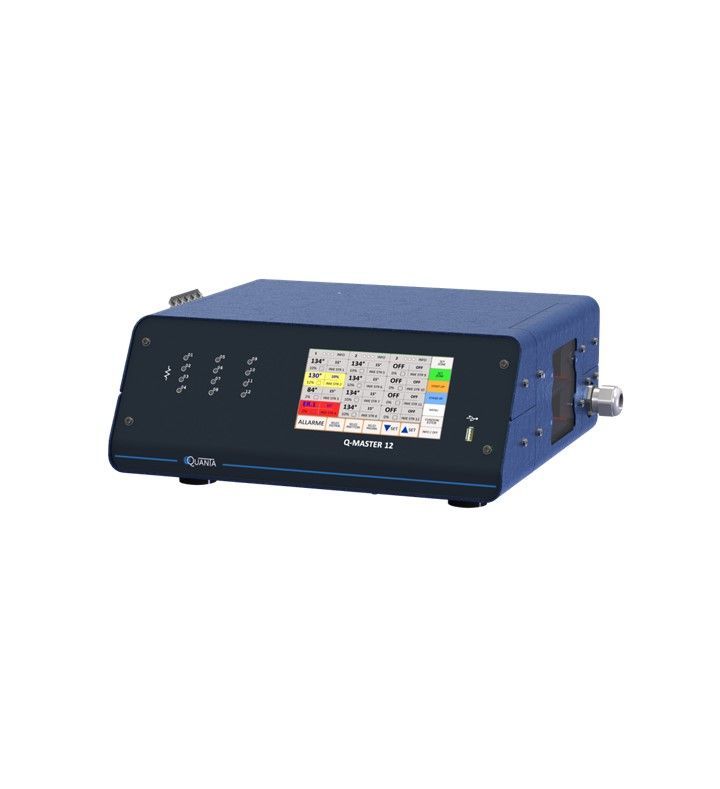

QMASTER SERIES
12 Zone Hot Runner Temperature Controller
- Manages up to 12 Zones
- Supports up to 3 Regulator Boards
- Size: 50x18x40 (WxDxH cm)
- 7'' Screen
- Max Power: 22kW (32Ax3) [standard] | 27kW (40A x3) [optional]
- Circuit Breaker: 40A
- Plug: 32A [standard] | 63A [optional]

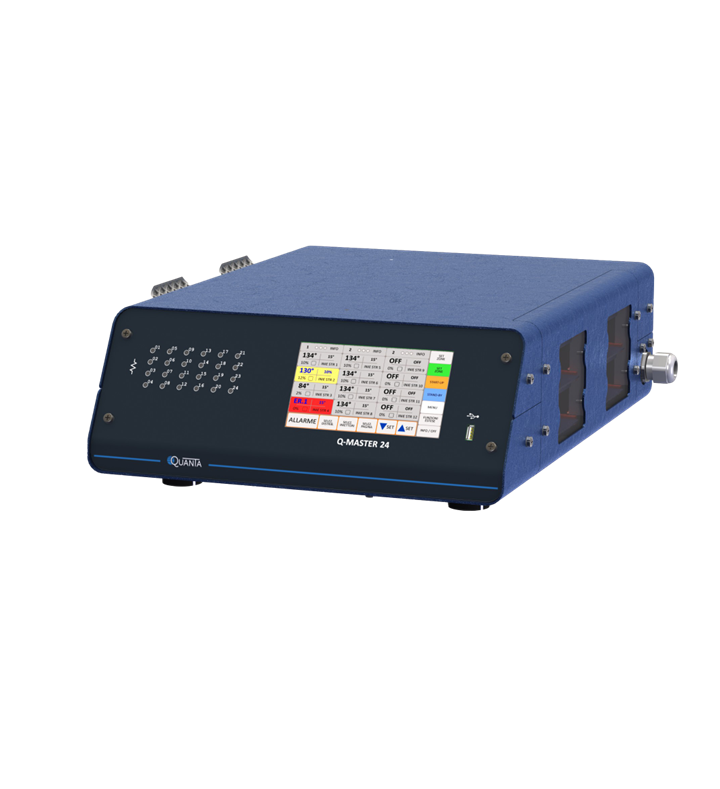

24 Zone Hot Runner Temperature Controller
- Manages up to 24 Zones
- Supports up to 6 Regulator Boards
- Size: 50x18x60 (WxDxH cm)
- 7'' Screen
- Max Power: 22kW (32Ax3) [standard] | 27kW (40A x3) [optional] | 37kW (54Ax3) [optional]
- Circuit Breaker: 40A [standard] | 63A [optional]
- Plug: 32A [standard] | 63A [optional]

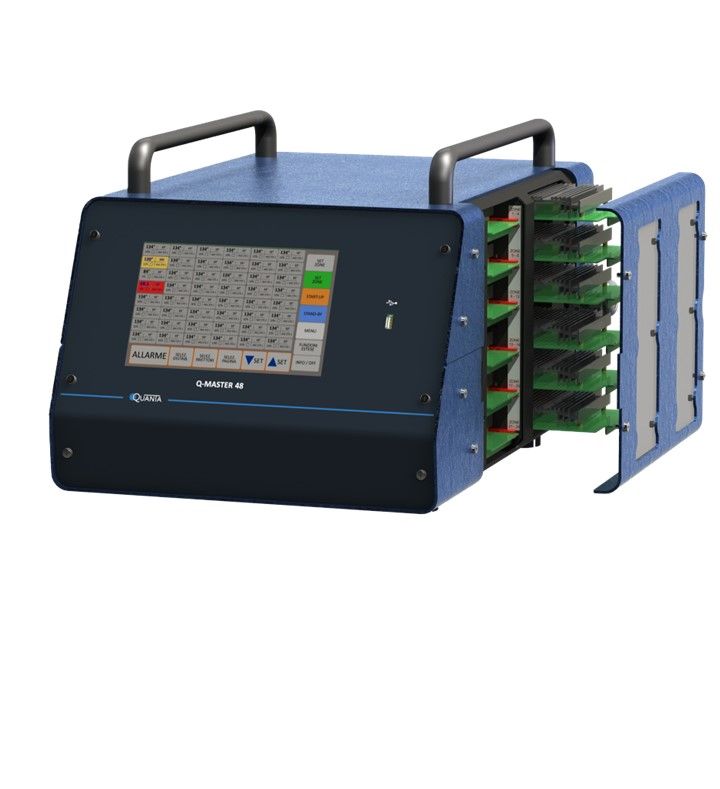

48 Zone Hot Runner Temperature Controller
- Manages up to 48 Zones
- Supports up to 12 Regulator Boards
- Size: 50x36x64 (WxDxH cm)
- 10'' Screen
- Max Power: 37kW (54Ax3) [standard] | 22kW (32A x3) [optional] | 27kW (40Ax3) [optional] | 43kW (63Ax3) [optional]
- Circuit Breaker: 40A [standard] | 63A [optional]
- Plug: 63A [standard] | 32A [optional]

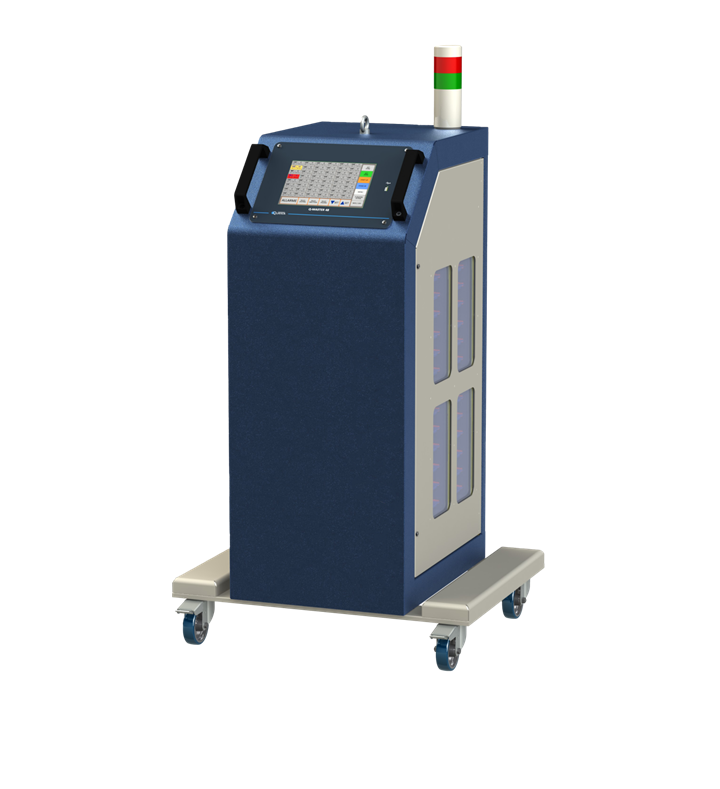

96 Zone Hot Runner Temperature Controller
- Manages up to 96 Zones
- Supports up to 24 Regulator Boards
- Size: 78x123x62 (WxDxH cm)
- 10'' Screen
- Max Power: 43kW (63Ax3) [standard] | 37kW (54A x3) [optional] | 51kW (75Ax3) [optional] | 69kW (100Ax3) [optional]
- Circuit Breaker: 40A [standard] | 63A [optional]
- Plug: 63A

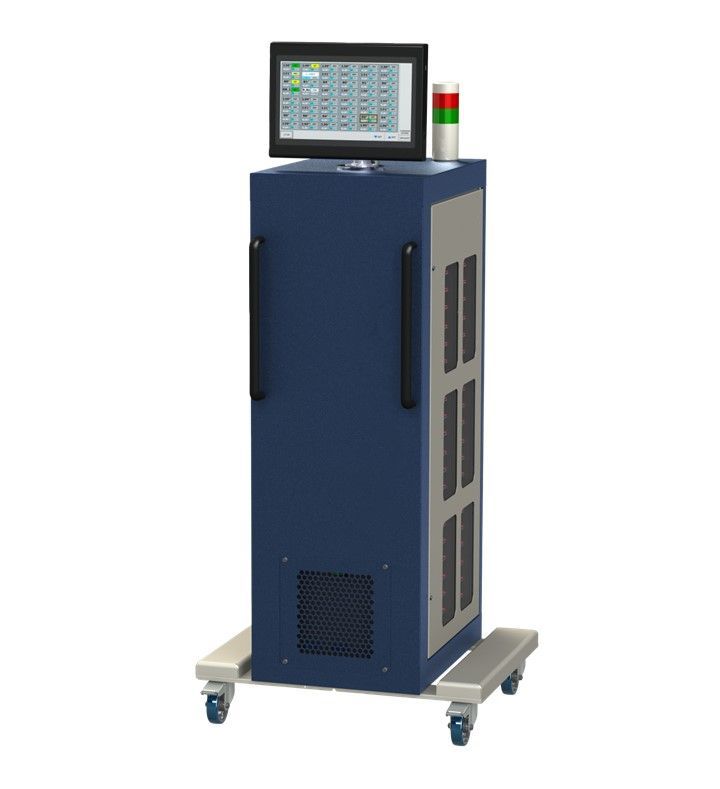

144 Zone Hot Runner Temperature Controller
- Manages up to 144 Zones
- Supports up to 36 Regulator Boards
- Size: 78x141x62 (WxDxH cm)
- 15.6'' Screen
- Max Power: 86kW (125Ax3) [standard] | 43kW (63A x3) [optional] | 69kW (100Ax3) [optional]
- Circuit Breaker: 125A [standard] | 63A [optional] | 100A [optional]
- Plug: 63A

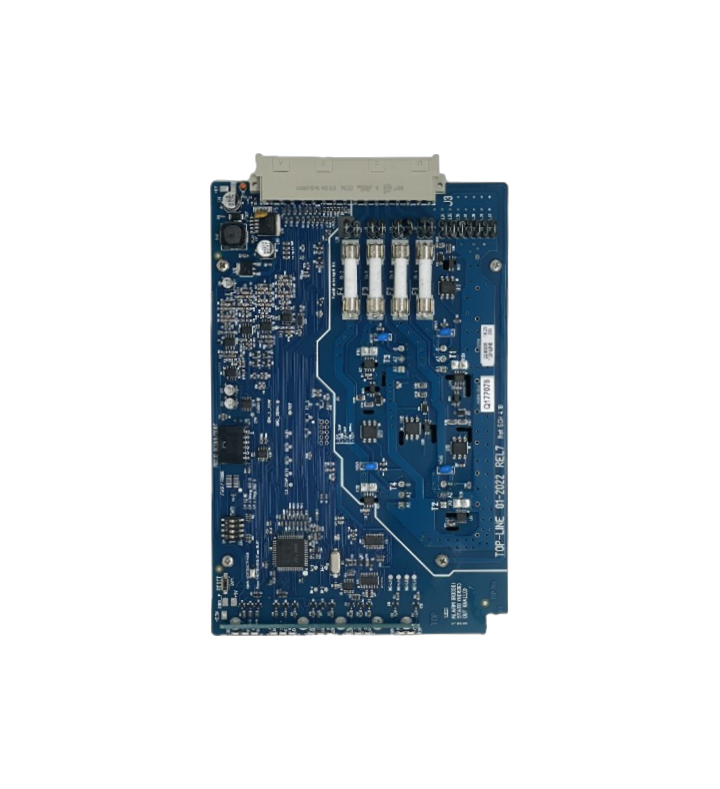

Regulator Board
Efficient Design for Optimized Performance
• Handles up to 4 zones with a capacity of 15A
• Integrated heater fuses ensure safety and reliability
Advanced Microprocessor
• Rapid and accurate control
• Seamlessly adjusts to different load conditions
Engineered for Long-Term Reliability
• Robust construction minimizes maintenance and repair efforts
• Reduces the need for extensive spare parts inventory
Service Friendly
• Boards can be replaced in seconds, minimizing operational downtime
Advanced Thermal Control
The PQE control system is designed to provide precise and stable temperature management for Hot Runner systems. Based on an advanced PID algorithm, PQE ensures a rapid response to thermal variations, minimizing start-up times and deviations from the desired setpoint.
Industry 4.0 and Remote Management
Industry 4.0 compliant, featuring integrated Modbus communication for seamless data exchange with industrial automation systems. Additionally, the built-in Real VNC technology enables remote access and management via tablet, smartphone, or PC, ensuring maximum flexibility and convenience for operators

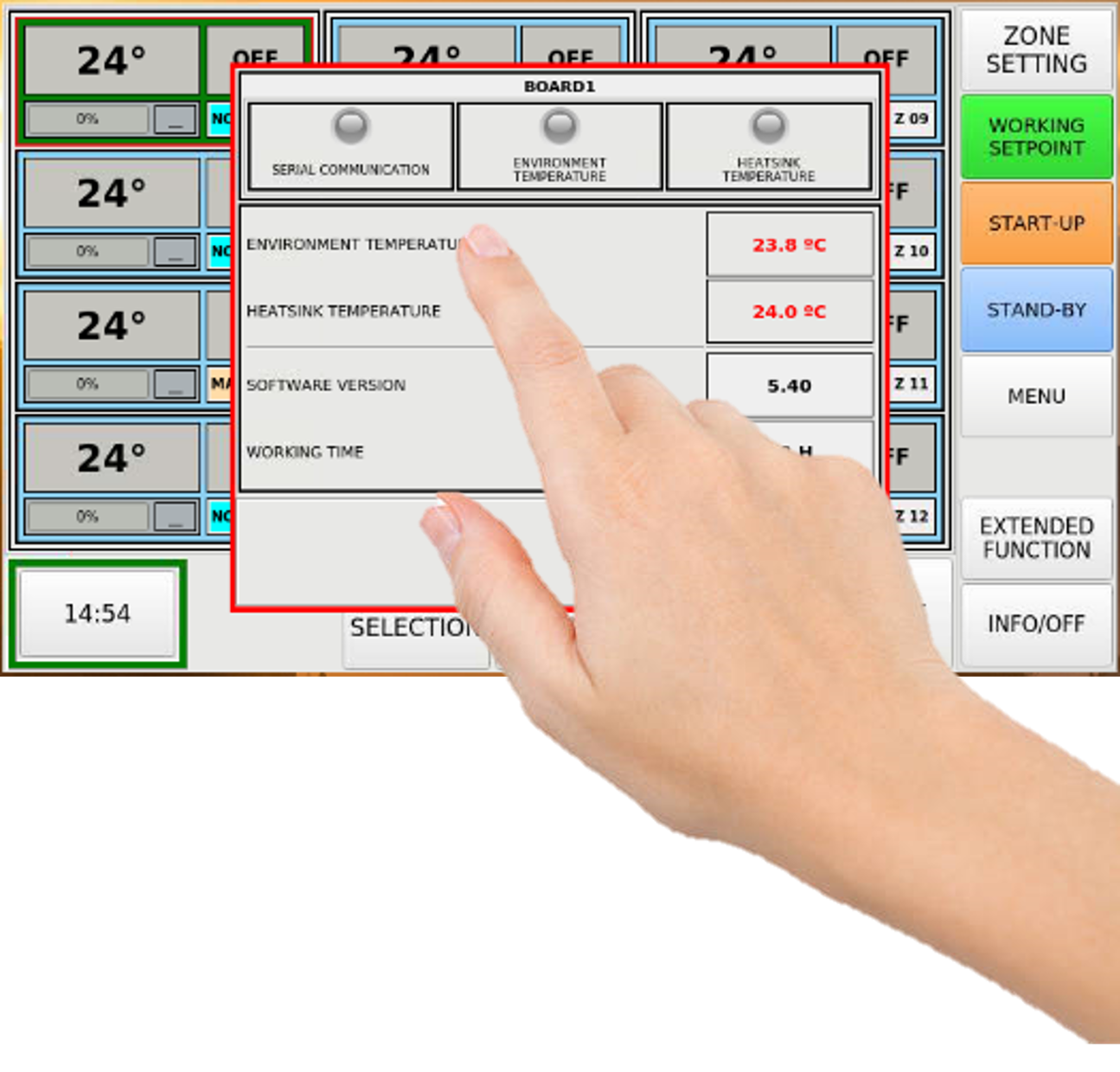

User-friendly Interface with Touch Screen Control
An intuitive and user-friendly interface, that allows operators to access key information and functionalities effortlessly. The responsive touch screen controls ensure efficient navigation and precise operation, making adjustments seamless and straightforward.

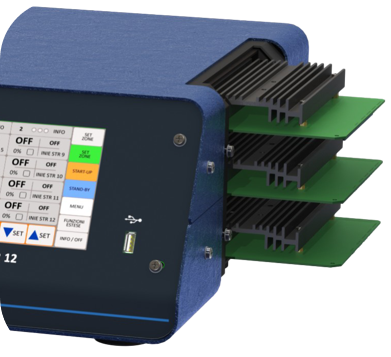

Easy Servicing and Troubleshooting
The control unit is designed for effortless maintenance, featuring tool-free, quick-release regulator boards that can be swapped out in seconds. A comprehensive and intuitive alarm system further enhances efficiency, enabling operators to quickly identify and resolve issues, minimizing downtime and maximizing productivity.
Customizable White-Label Solutions
Our hot runner control units are available as white-label products, allowing seamless integration into your brand. With customizable branding options, these units provide the same advanced performance while maintaining your company’s unique identity.

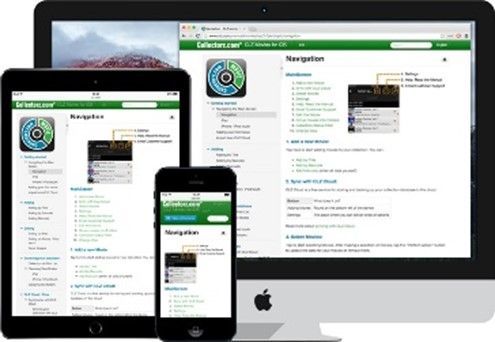

Comprehensive Self-Service Guide
Accessible online, with pc or smartphone, our self-service guide enables operators to address up to 90% of common issues independently, reducing the need for the intervention of a specialized technician and minimizing downtime.
